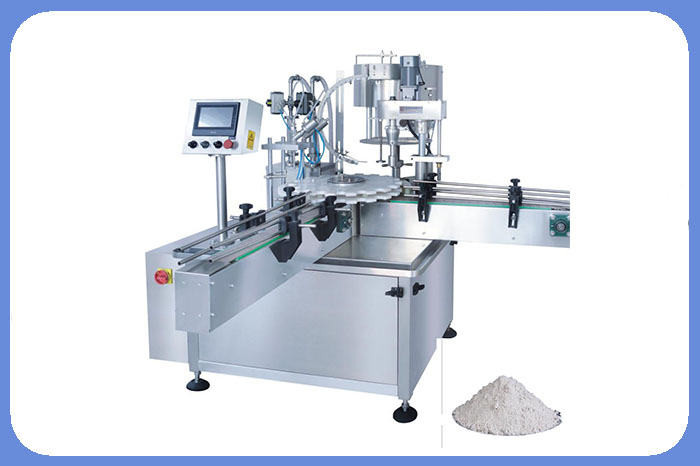

| Name: | Industrial semi automatic power pepper or powder seasoning powder Automatic Filling Machine |
| Driven Type: | Electric |
| Material: | Stainless Steel |
| Processing: | Bottle Packing Machine |
| Name: | Industrial semi automatic power pepper or powder seasoning powder Automatic Filling Machine |
Description:TY-F series semiautomatic powder packing machine produced by our company (Zhengzhou Tianyi Packaging Equipment Co., Ltd.) can realize precise measurement by controlling the number of turns of measuring spiral rotation by a stepper motor or a servo motor. By changing different gauges on the same machine, Screw, can achieve 5-5000 grams of continuous adjustable, is the majority of manufacturers of powder products, especially the product specifications of many powder material manufacturers of choice for equipment.
Feature:
1. the same quantitative packaging machine in the 5-5000g electronic scale keyboard through the adjustment and replacement of different specifications of the spiral continuously adjustable feed; have a certain mobility of powder, powder materials can be;
2. photoelectric switch control, only artificial bagging, pocket clean, easy to seal;
3.contact parts with materials are made of stainless steel, easy to clean.
Specification:
Model |
VFJ420 |
VFJ540 |
VFJ730 |
VFJ1100 |
||
Bag type |
Pillow Bag, Gusseted Bag, Block Bottom Bag |
|||||
Operation Mode |
Intermittent |
|||||
Speed |
Up to 80 bags/min |
20 to 70bags/min |
5 to 30bags/min |
|||
Bag Length (single stroke) |
20 to 280mm (0.8 to 11’’) |
50 to 340mm (2.0 to 13.4’’) |
50 to 460mm (1.9’’ to 18’’) |
100 to 480mm (3.9’’ to 19’’) |
||
Bag Width |
40 to 200mm (1.6 to 7.9’’) |
80 to 260mm (3.1 to 10.3’’) |
80 to 350mm (3.1’’ to 13.8’’) |
120 to 540mm (4.7’’ to 21.2’’) |
||
Packing Weight |
10g to 1000g |
200g to 2000g |
500g to 3500g |
3000g to 10kg |
||
Reel Film Width |
≤420mm (16.5’’) |
≤540mm (21.2’’) |
≤730mm (28.7’’) |
≤1100mm (43.3’’) |
||
Reel Outer Dia. |
400mm (15.7’’) |
400mm (15.7’’) |
500mm (19.7’’) |
600mm (23.6’’)
|
||
