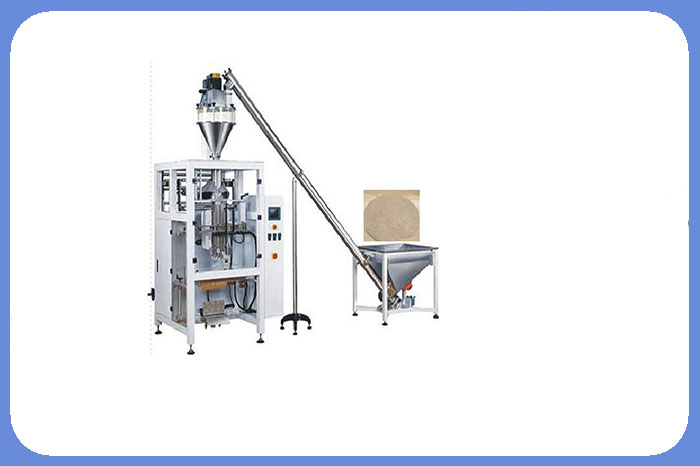

Name: | Equipment Name Model: YSDF-B type, powder quantitative packaging machine |
Driven Type: | Electric |
Material: | Stainless Steel |
Processing: | Bottle Packing Machine |
Name: | Equipment Name Model: YSDF-B type, powder quantitative packaging machine |
Description:
The material contact parts hopper, measuring spiral, stirring, etc. are made of stainless steel; use of high stability, high precision weighing sensor, weighing module; interface is simple, intuitive display; independent packaging weight input, weighing weight Display window, the display window with high-brightness LED display; menu operation is simple, intuitive and friendly; manual assistance on the bag (or barrel), pneumatic folder bag; weighing system independent Weighing, weighing accuracy, high speed, load cell Adopting TOLEDO load cell; asynchronous motor control screw feeding, frequency converter speed regulation, big and small double helix speed measurement and feeding, high control accuracy. Equipment Model: YSDF-B type
Feature
1. |
The powder filling packing machine has mixing and filling function. |
2. |
High precision, error≤±1%, with high speed.. |
3. |
Digital tube display, simple and convenient to operate. |
4. |
Filling and weighing range: 1-20/50-500/100-5000 g |
5. |
Workbin is made of stainless steel or organic glass, quite easy to unpick and wash without tools. |
Details:1.Power supply: AC380V 900W
2.Packaging accuracy: ± 1%
3.Packaging specifications: 5g-5000g (need to replace the filling parts)
4.Packaging speed: 1500-2500 bags / hour (depending on packaging specifications and materials)
5.Total weight: 280kg
6.Machine size: 1000 × 850 × 1850mm
Application:
1, the packaging machine is suitable for quantitative packaging of powder, powder and powdery materials in the fields of chemical industry, food, agricultural and sideline products; such as milk powder, starch, pesticide, veterinary drug, premix, additive, seasoning, Enzyme preparation and so on;
2, the automatic quantitative packaging machine for bags, cans, bottles and other packaging containers powder quantitative packaging;
3, the machine is a set of machine, electricity, light, instrument in one, single-chip control, with automatic quantitative, automatic filling, automatic adjustment of measurement error and other functions;
