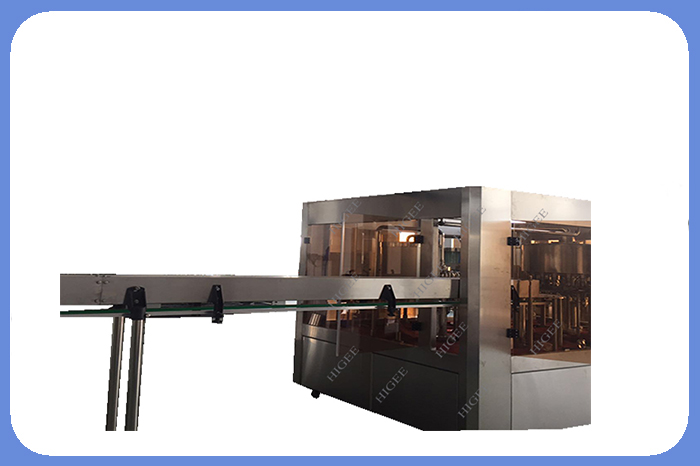

Description:

1.Filling system: the main components includes feeding tanks, piping, filling valve, filling head,gear,motor and control system.the control system is the main brain of the machine,it controls filling,motor,conveyor etc,the medium comes from tank goes to filling valves through piping,filling head connect with bottle then valve open,medium fills the bottle.

2.capping system:The capping system is controlled by PLC,when bottle in place it cappings immediately.

3. Electrical system: mainly imports electrical components configure our machines,such as Frequency converter, PLC system,proximity switch and so on.

Feature:

1. Before the capping, use hot water bubble set to displace bottlenecks air, ensuring the oxygen content of less than 0.15mg / L.
2. Filling machines includes broken bottle automatically stopping valve, broken bottle washing, and foam automatically exhausting device.
3. The whole operation adopts advanced man-machine interface, PLC control, frequency conversion stepless speed regulation and other automatic control technology, with no bottle no open valves, no stamps; no cap no operation, and other security protection.

Specification:

Model:     RCGF32-32-10
2. Production capacity:12000b/h(500ml PET bottle)
3. Filling medium: juice, tea, etc.
4. Conveyor method:air conveyor
5. Neck-hanging operating: German Krones technology
6. Washing head: 32
7. Filling head:32
8. Capping:10
9. Main motor power: 7KW
10. Total power: 18KW
