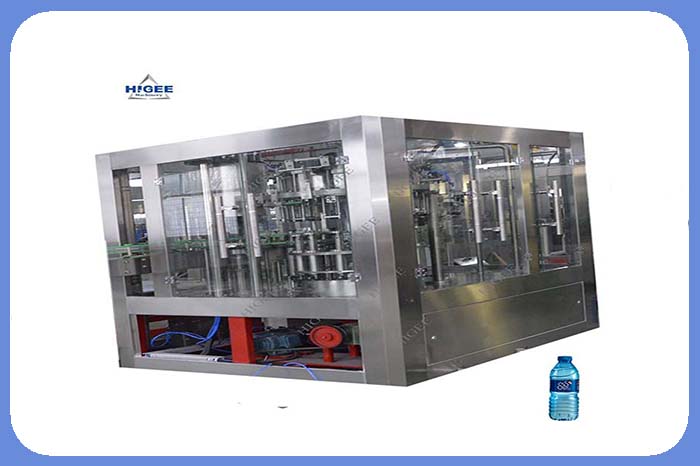

| Name: | CGF40-40-12Rinsing, Filling, Capping 3in1 Unit Machine,Pure Bottled Water Production Line |
| Driven Type: | Electric |
| Material: | Stainless Steel |
| Processing: | Bottle Packing Machine |
| Name: | CGF40-40-12Rinsing, Filling, Capping 3in1 Unit Machine,Pure Bottled Water Production Line |
Description
Our CGF40/40/12 Washing,Filling,Capping 3in1Machine,is a new developing products based on introduction, digestion and absorption of domestic and foreign similar products, It also combined many years of production experience. This machinery set the filling and capping in one, and droved by a drive motor. With a high degree of automation, compact structure, beautiful appearance, convenient operation and maintenance, safe and reliable production capacity continuously adjustable characteristics, it is currently the ideal of non-carbonated liquid beverage filling production equipment.
Its main purpose and scope available:
Mainly used for filling and capping the mineral or pure water,fruit juice with the round and shaped PET bottles at room temperature,the main motor adopts the transducer.
Technical Features
Main Performance
Capacity |
8000-15000BPH |
Filling Heads |
40 |
Capping Heads |
12 |
Washing Heads |
40 |
Main parameters
Main Power |
7.5KW |
Hopper motor |
0. 18KW |
Operating voltage AC |
380V |
Water consumption(sterile water) |
≈8.5M3/h |
Water pressure |
0.4Mpa |
Dimensions
Equipment Dimensions |
LxWxH 4500x3300x2750(unit:mm) |
Equipment Weight |
≈6000Kg |
Technical specifications
Equipment Configuration |
Conveyor with stucking in bottle body |
Bottle into System |
Wind conveyor (Length:1.5M) |
Bottle out System |
Chain conveyor(Adjust speed,length:1.5M) |
Filling |
Normal Pressure |
Capping |
Magnetic cap,Capping torque adjustable |
Motor |
Made in Zhangjiagang |
Water pump |
Made in Zhangjiagang |
Inverter |
Mitsubishi(Japan) |
PLC |
Mitsubishi(Japan) |
Touch Screen |
Mitsubishi(Japan) |
Electric |
Schneider |
Material |
Stainless Plate( South Korea) |
