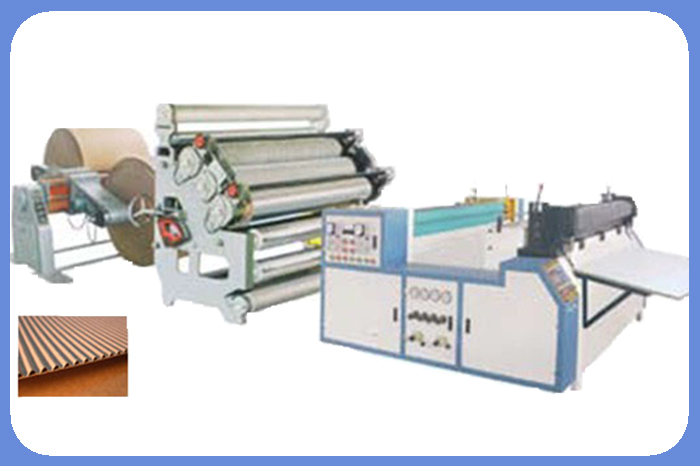

| Name: | One-side corrugated cardboard production line Single facer |
This line is a special equipment to produce one-side corrugated paperboard by corrugating the web, automatic gluing, pressure adhering and
cutting. The type of fluting is designed according to the international standard. Combining with the internationally advanced structure, the
line is characterized by its reasonable structure, new appearance, advanced technology, convenient operation, low energy consumption and
small floor apace, suitable for small-medium package and color corrugated case producing.
SPECIFICATGATIONS：
Model |
QDWJ-C1320 |
QDWJ-C1450 |
QDWJ-C1650 |
Max.width of paper used |
|||
Type of flute |
UV/A.B.C.E |
UV/A.B.C.E |
UV/A.B.C.E |
Mechanical speed |
0 |
0 |
0 |
Heating electricity, steam, coal, gas |
Electricity(silicom tube),LPG,heat conducting oil, steam |
Electricity(silicom tube),LPG,heat conducting oil, steam |
Electricity(silicom tube),LPG,heat conducting oil,steam |
Gross cut length range |
0 |
0 |
0 |
Slitting width range |
350 |
350 |
350 |
Power |
3-phase,380V,50HZ,6Kwtiming motor |
3-phase,380V,50HZ,6Kwtiming motor |
3-phase,380V,50HZ,6Kwtiming motor |
Total Power Consumption |
23KW |
28KW |
30KW |
|
Type of flute |
Height of flute Number of teeth/300mm |
|
A |
4.6-4.9
34±2 |
|
C |
3.6-3.9 38±2 |
|
B |
2.6-2.9 50±2 |
|
E |
1.5-1.8 88±2 1.1-1.5 92±2 |
