Best choice for paint bucket filling machine
Best choice for paint bucket filling machine

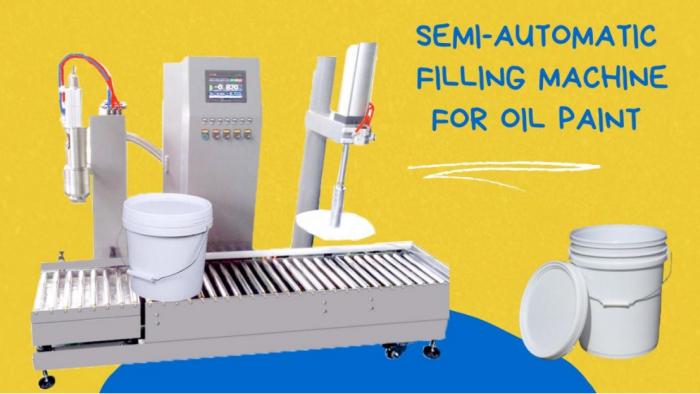

This semi auto paint bucket filling machine is a very economic choice, also convenience for use and save human labor. This filling machine suit for paint, gel, oil, liquid etc. bucket filling.
Working Operation:
place the drum on the weighing platform--machine start to fill automatically--achieve the target weight--machine stop--manually push the drum to the capping device--the device cap the cover.
1. Contacting material parts using SUS304 & PTFE;
2. Using Mitsubishi PLC, Omron relay;
3. The sealing system uses PTFE, solvent
resistance, acid and alkali resistance and long life;
4. The platform and roller all use stainless steel, acid resistance;
5. Filling inside the drum, avoiding material dripping out;
6. Fast and slow filling method to increase the filling accuracy;
7. After the filling is finished, the filling gun will pull up automatically and wait for the next filling;
8. unique dripping hold device avoids dropping on the drum;
9. If the gun does not insert the drum correctly, the gun will pull up automatically and do not fill;
10. RS232 interface can transfer the data to the PC.
11. All digital adjustment, anti-vibration software;
12. Only need to push the drum on the platform and target the drum hole manually;
13. Press the emergency stop button when an emergency situation occurs.
Video link:
https://youtu.be/Mc8N0UoJhKQ
