| Name: | Nail polish round bottle and taper cap filling machine pneumatic cylinder and servo motor controlling |
| Production capacity: | 20-40 bottles/min |
| Height of Bottle: | 30-200mm |
| Diameter of object: | 30-90mm |
| Height of Label: | 15-140mm |
| Length of Label: | 25-300mm |
| Accuracy of Labeling: | ±0.5mm |
| Label roller inside diameter: | 76mm |
| Label roller outside diameter: | 380mm |

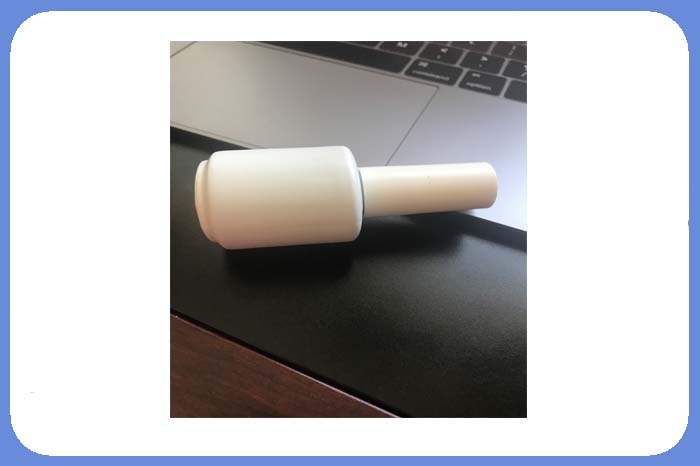

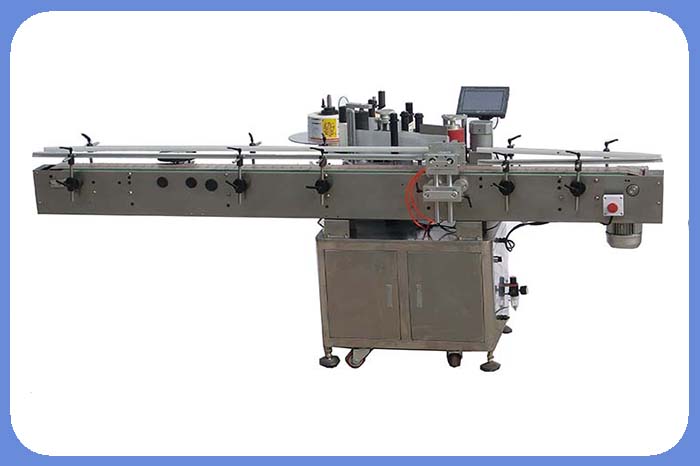

nail polish round bottle and taper cap filling machine pneumatic cylinder and servo motor controlling
Application：
It’s applicable for all kinds of flat objects such as food, chemical, pharmaceutical, cosmetic, stationery, CD disc, carton, box and various oil kettles etc. It’s for flat side labeling
Technical Parameters:
1. Size of Machine: 2000(L)×1000(W)×1250(H)mm
2. Labeling Speed: 20-40pcs/min
3. Height of Object: 30-200mm
4.Diameter of object: 30-90mm
5.Height of Label:15-140mm
6.Length of Label:25-300mm
7.Accuracy of Labeling: ±0.5mm
8. Label roller inside diameter:76mm
9.Label roller outside diameter:380mm
10.Power Supply: 220V 0.8kw 50/60HZ ( if the power supply different, a transformer is needed.)
11.Air consumption of Printer：5Kg/cm2

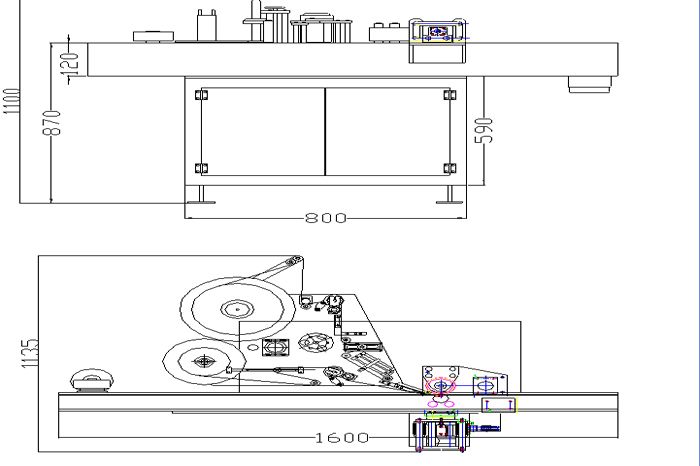

Engineer drawing

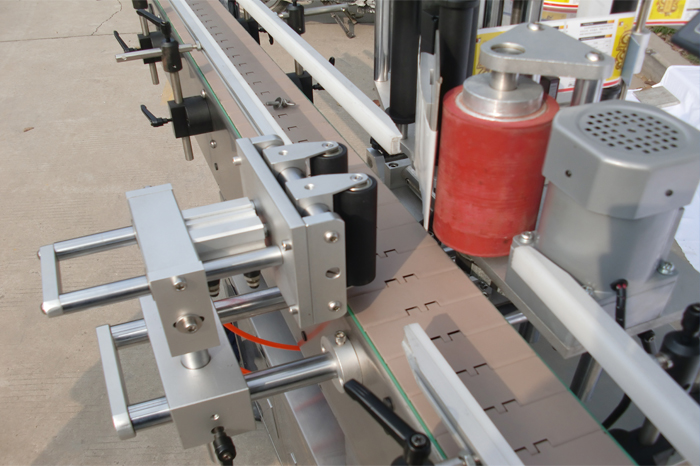

Details-fixed-position device pneumatic controlling
