Automatic cup type mask making machine n95 3M 1860 mask machine with printer and vent

Name:Automatic cup type mask making machine n95 3M 1860 mask machine with printer and vent
Model:HG-EAF50-1
Production speed:15-30pcs /minute
Voltage:3 phases 380V 50Hz
Power:15KW
Compressed air:5~7kgf/cm², using flow rate: about 300L/min
Weight:About 2500kg
Machine size:About 10400mm (L) × 2200mm (W) × 1830mm (H)

Product Description

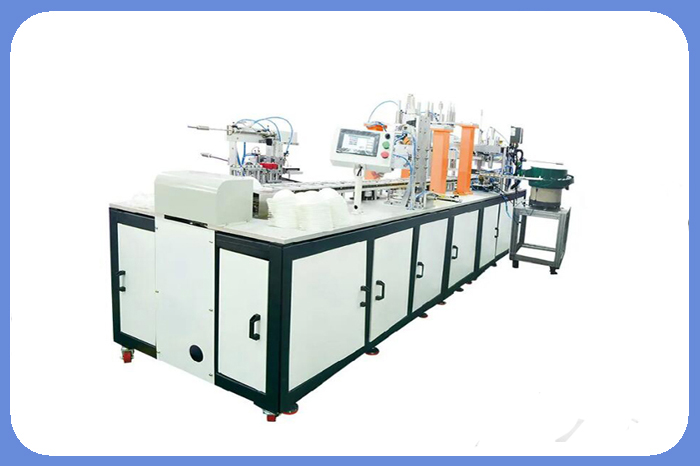

 HG-EAF50-1 Full Automatic N95Cup typeMask Production Line

Application



This is our automatic N95 mask making machine , this machine is suitable for the production of folding mask bodies. It uses ultrasonic technology to bond 3 to 6 layers of pp non-woven fabric, activated carbon and filter materials. And cut the folding mask body, can process 9001, 9002 mask body. Depending on the raw materials used, the produced masks can reach different standards such N95 and so on. Then use the ear band spot welding machine ,bridge welding machine and forming edge band machine to weld the mask body to complete the production of the entire folding mask.


Feature

1. 304# Stainless steel machine body, acid-alkali resistance and corrosion resistance, fully up to related food/cosmetic/

pharmaceutical sanitation standard.

2. Advanced PLC + touch screen control system, easy to operate.

3. No mask, no folding, no bags, automatic shutdown.

4. Facial mask folding, take bag, bag open, packing and output.

5. Customized folding types available.


Specification

Model

HG-EAF50-1

Production speed

15-30pcs /minute

Voltage

220V/50Hz 1 phase

Power

13kw

Compressed air

0.5 ~ 0.7 MPa, the use flow rate is about 300L / min

Weight

2500 kg

Machine size

L10400 * H2200mm * W1830mm

Operation environment

temperature 10 ~ 35 , humidity 5-35% HR, no flammable or corrosive gas Body, no dust (cleanliness no less than 100,000)
