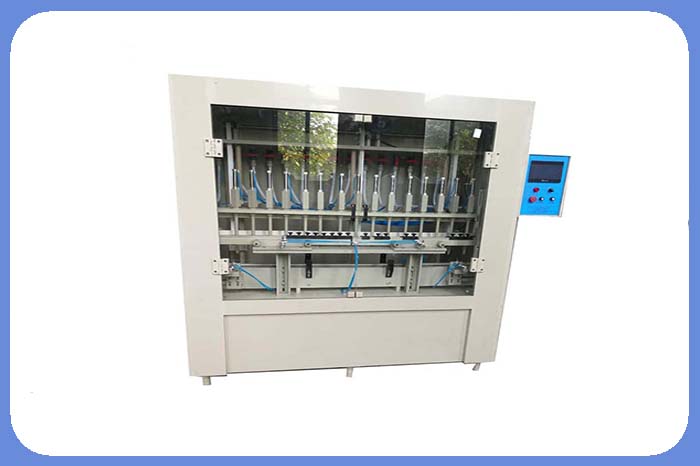

Automatic 100ml to 500ml disinfectant filling machine

Working Process:

HG-AF2000-16 Anti-corrosive filling machine is a machine specially designed for corrosive liquids and cosmetics which can not touch metal liquids. It is aimed at high corrosive liquids, such as cleaning liquids, pesticides, liquid fertilizers, disinfectant etc.

Feature:

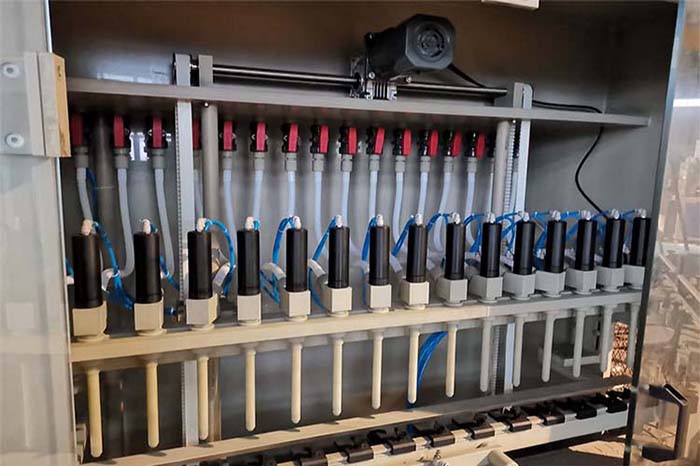

2.1. The materail of filling nozzles, liquid tank, frame of filling machine and pipes touching fertilizer are PP or PTFE.

2.2. The filling machine doesn’t fill without bottle, and the bottle is automatically suspended when the bottle is not blocked. At the same time, the rear side is equipped with coordinated sensor, and the linkage function is realized with the rear device.

2.3. Higee all use PP (polypropylene) material. The liquid contact part is PTFE material touching liquid to ensure the high quality of our machine. PLC control system is used and electric parts are using famous brand like Mitsubishi Siemens Schneider and so on.

Specification:

1. Production capacity and filling precision:

        Bottle size    Speed              filling precision

        500ml        3000BPH            ±0.1-0.2%

2. Filling nozzles:16 or 8

3. Filling volume:100-500ml

4. Air pressure:0.6~0.8 MPa

5. Powder:Single phase 220V, 50hz, 1.8KW

6. Air consumption :60L/Min

7. Dimension:2200×1500×2100mm(L×W×H)

8. Weight:350KG
