Automatic alcohol white spirit or whiskey glass bottle filling and capping machine line with bottle feeding and collecting table

Name:Automatic alcohol white spirit or whiskey glass bottle filling and capping machine line with bottle feeding and collecting table
Model:HAY18-8
Filling heads:18
Capping heads:8
Production capacity:10000-12000 bph based on 100ml bottle
Air source pressure:0.5-0.6MPa
Rinsing water pressure:0.15-0.2 MPa
Power:380 Vac50Hz 3 Phases, 2.5KW
Approximate Overall size:210018002400 (LWH) mm
Approximate Weight:2500Kg
Filling type:Negative pressure or Vacuum

Product Description

Automatic liquor and alcohol glass bottle filling machines line

Syrup liquid processing system

HAY series filling machine line integrates bottle turning table and liquor filling and capping into one monobloc, and the two processes are carried out full automatically, bottle collecting table. By using the single-cylinder structure and micro-negative pressure isobaric filling principle, the problems of bubbling, dripping and large deviation in filling level accuracy during the filling process are solved.

This machine works harmoniously with working table;

This machine is capping glass bottle and with metal capping function.

Integrated three function:

1. Bottle feeding

2. Filling alcohol into the bottles,

3. Capping the filled bottles

4. Collecting table

Working Process:

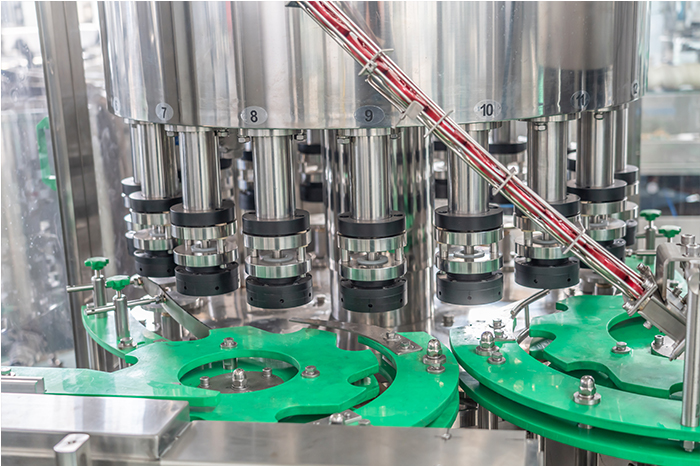

About Filler Station

The entire filler is plunger piston filling system.

High accurate SUS316 construction filling nozzle, make sure high accurate filling level

SUS316 liquid bowl, & pipeline system.

Filling level adjustable by choosing different silicone gasket (quick change over parts)

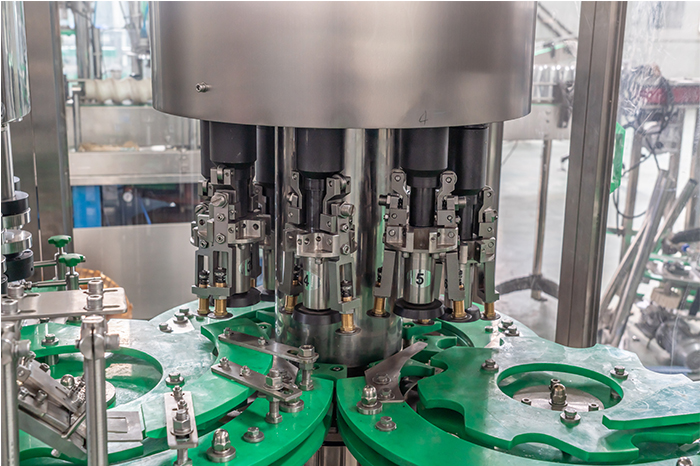

About the Capper

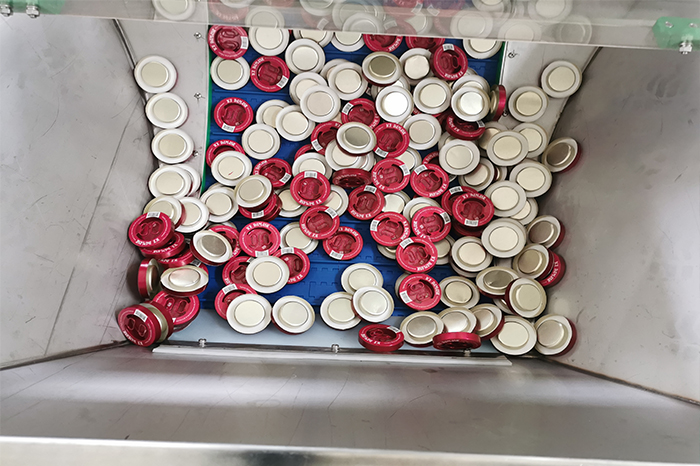

Place & capping system. Automatic caps arranging, feeding.

Electromagnetic capping heads, with burden discharge function,

All 304stainless steel construction

No bottle no caps delivery.

Automatic stop when lack of bottle.

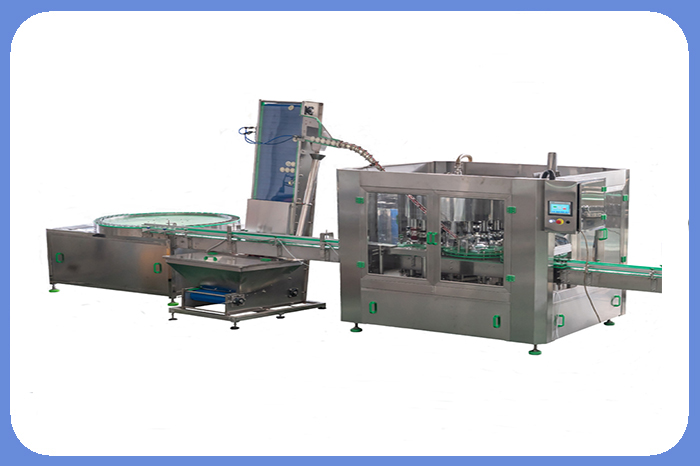

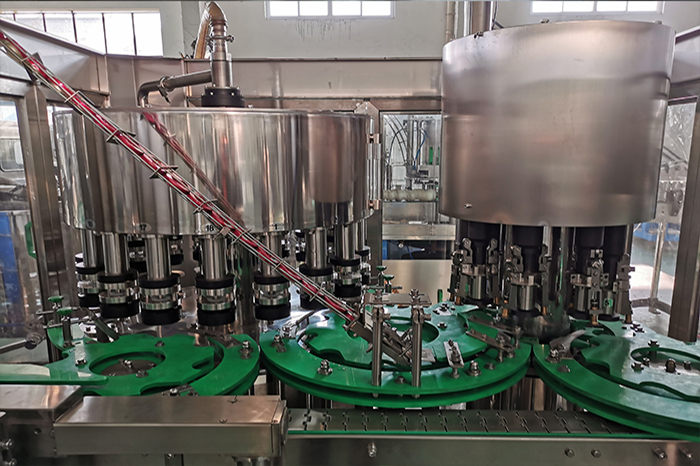

Main filling and sealing machine

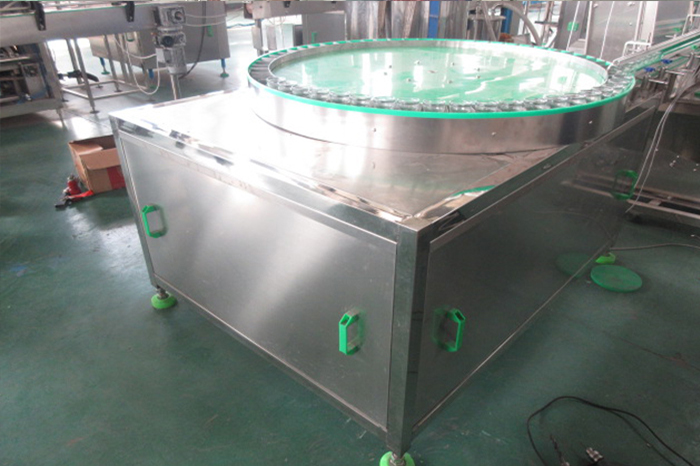

Feeding table

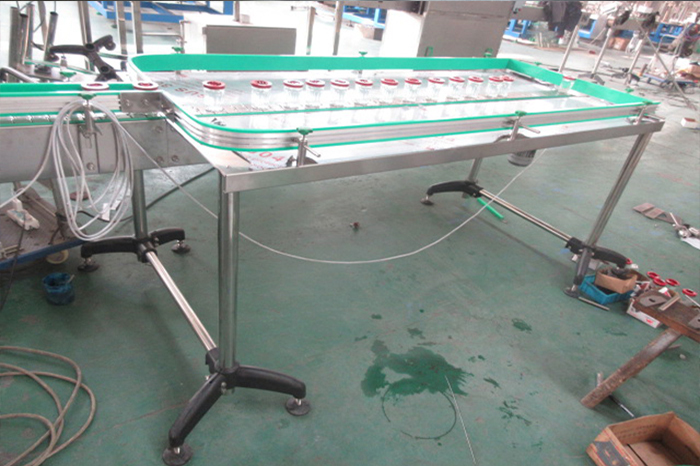

Collecting table
