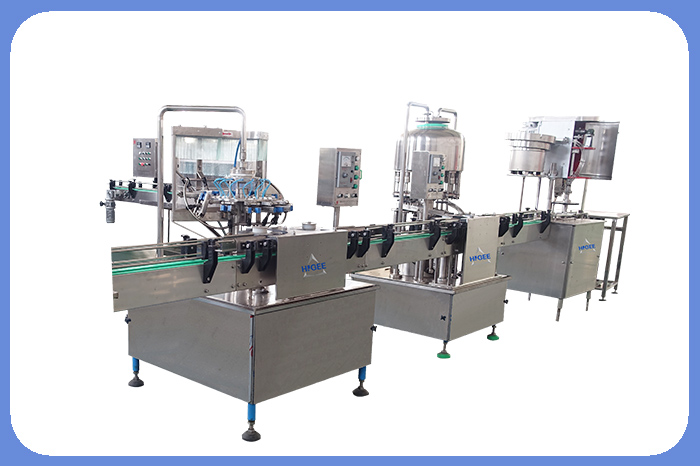

Name: | Automatic PET bottle carbonated drink beverage filling,capping and labeling machine line with carbonated system machine |
Model: | DCGF8-8-3 |
Washing head: | 8 |
Filling head: | 8 |
Capping head: | 3 |
Production capacity: | 1500BPH 250ml |
Air source pressure: | 0.5-0.6MPa |
Rinsing water pressure: | 0.15-0.2 MPa |
Bottle height: | 150-340MM |
Bottle diameter: | Φ50-Φ110MM |
Filling way: | Isobaric Filling |
Automatic PET bottle carbonated drink beverage filling,capping and labeling machine line with carbonated system machine
Carbonated processing system
Carbonated processing system | Model |
Sugar melting tank | HT-2000 |
Syrup filter | ZPR-2000 |
Sanitary beverage pump | BP-5000 |
Blending tank | LB-2000 |
Carbonated beverage mixer | QHS-5000 |
Chilling system | SML-12F |
CIP system | QX |
Connecting pipes and valves | SUS304 |
HG series drink mixer adopts special mixed gas and liquid ejector and the technique of vacuum deoxidation. The mixing precision is high and the CO2 is fully mixed. The mixing proportion between water and syrup is seriously controlled by micro metering device. It is equipped with CO2 accuracy pressure control, so that the liquid level is always stable. The alarm device for low pressure and low liquid level ensures the quality of its production. The machine obtains advantages of high reliability, high efficiency, high grade of automation and easy operation, etc.
Working process
Carbonated drink system- Bottle feeding - automatic 8 heads washing – automatic 8 heads filling-automatic cap unscrambling- caps feeder putting the cap on bottle – automatic 3 caps capping – collecting

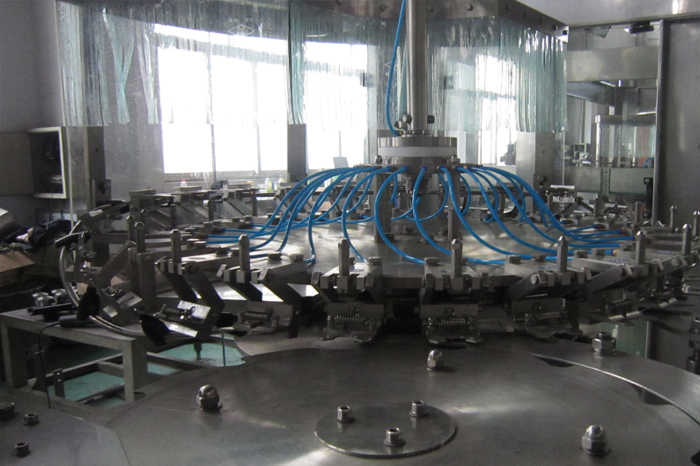

Washing machine parts

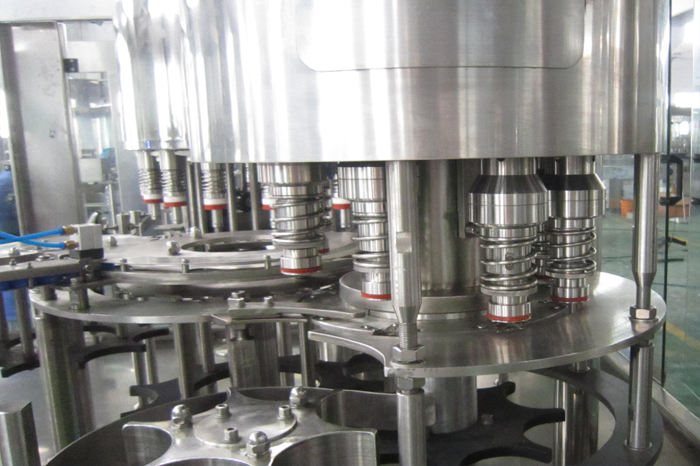

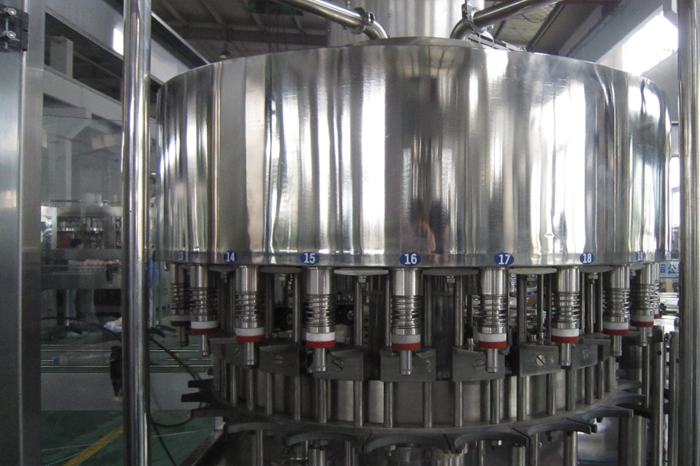

Drinking filler
Bottle capping

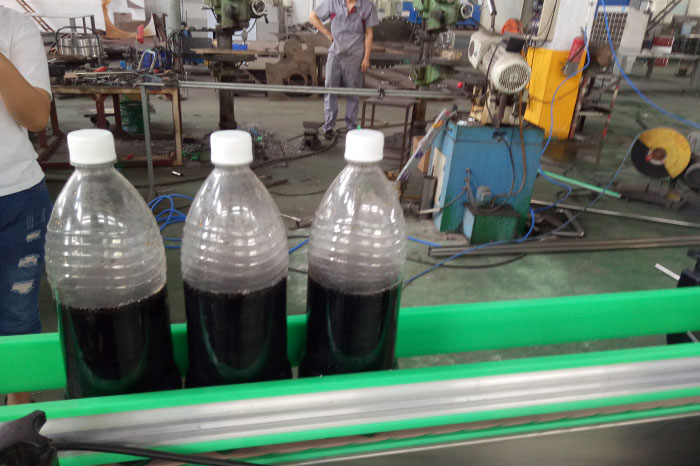

Final product:
