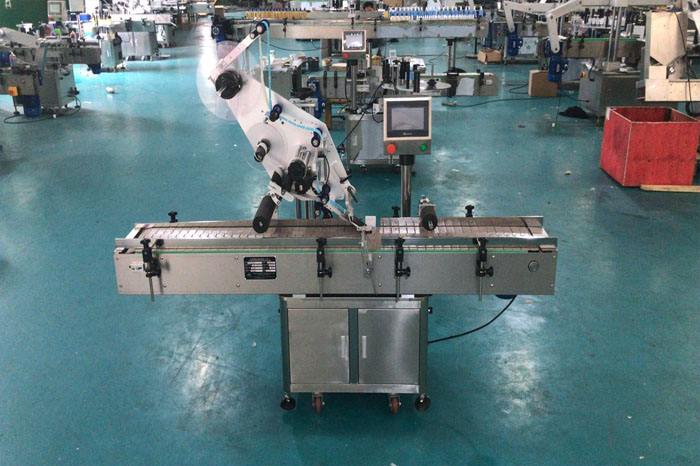

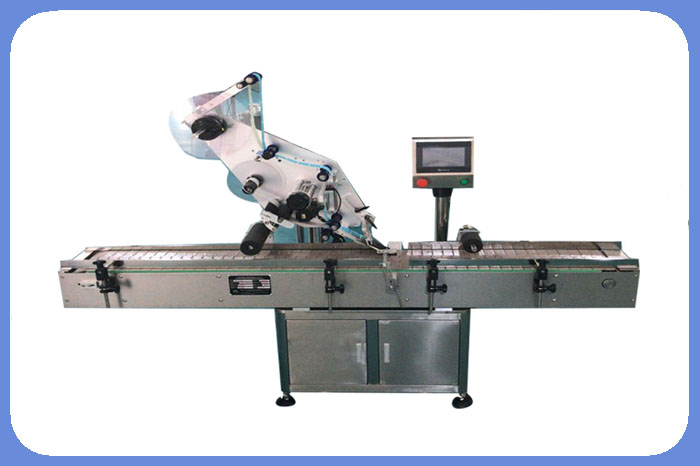

Higee automatic top surface labeling machine with one or two sides bag, pouch

Name:Higee automatic top surface labeling machine with one or two sides bag, pouch
Output Speed:20-60pcs/min
Height of Object:30-200mm
Width of object:20-200mm
Height of Label:15-150mm
Length of Label:25-300mm
Accuracy of Labeling:±0.8mm
Label roller inside diameter:76mm
Label roller outside diameter:350mm
Size of Machine:1600(L)×550(W)×1600(H)mm
Weight:150kg

Product Description

                          Higee automatic top surface labeling machine with one or two sides bag, pouch

Application:

It’s applicable for all kinds of flat objects such as food, chemical, pharmaceutical, cosmetic, stationery, CD disc, carton, box and various oil kettles etc. It’s for flat side labeling



Features:



1. Main body is made by SUS304 stainless steel & high grade aluminum alloy.

2. Labeling head is driven by advanced step motor which is imported from Japan.

3. All the magic eye is advanced photo detector made in Japan.

4. PLC control system is equipped with human interface, including 60 groups of memory unit.

5. Labeling position and height is adjustable.

6. The transportation height can be adjusted by height of production line.

7. Be able to connect with conveyor and production line

8. Transparent label monitor for option.

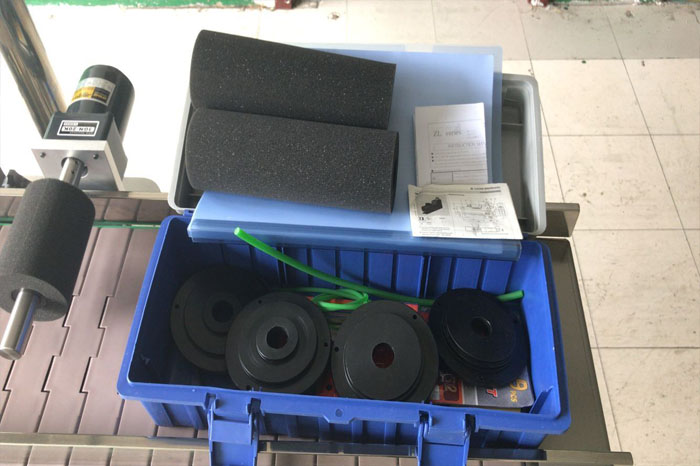

Spare part and operation manual


                         spare part and paper operation manual

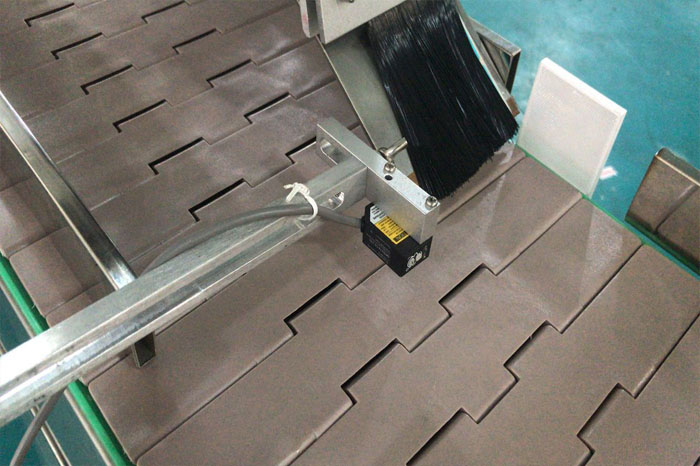

                                   Sensor
