RCGF32-32-10 3-in-1 China low price products 3 in 1 orange juice machine Glass bottle with aluminum cap

Name:RCGF32-32-10 3-in-1 China low price products 3 in 1 orange juice machine Glass bottle with aluminum cap
Driven Type:Electric
Material:Stainless Steel
Application:Pure Water|mineral Water|beverage
Product Name:RCGF32-32-10 3-in-1 China low price products 3 in 1 orange juice machine Glass bottle with aluminum cap

Product Description

Description:

 The system has fully considered the beverage's characteristics (such as the frothing of the tea drink and mixed juice) and the technical requirement of the hot filling.

Huge production capacity juice bottle filling machine/processing plantwith many kinds fruit

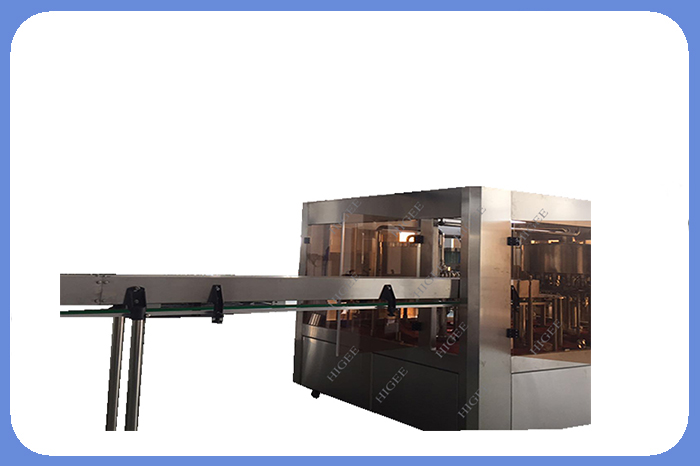

Standard 3-in-1 monoblock for PET bottles rinsing, hot filling and capping. It is applicable to fruit juice, tea beverage, functional beverage, etc with big capacity. According to the special production condition, another sterilizing rinsing module could be added,according to yourselves.

Feature:

1..Perfect filling temperature control system.

2..Reflux tank system has the function of supplying the material automatically.

3..Perfect CIP system.

4..To realize stable running, convenient for maintenance and long life, all the electric and pneumatic components are from world famous manufacturer. Example, PLC from OMRON, transducer from MITSUBISHI, pneumatic components from FESTO, switch

Specification:

Model

RCGF

32-32-10

RCGF

40-40-12

RCGF

50-50-15

Washing No

32

40

50

Filling No

32

40

50

Capping No

10

12

15

Production Capacity(500ml)

12000



15000



18000

Motor Capacity(KW)

6.0

7.5

9.5

Overall size

2900*2200*2500

3600*2700*2850

5300*3200*2850
