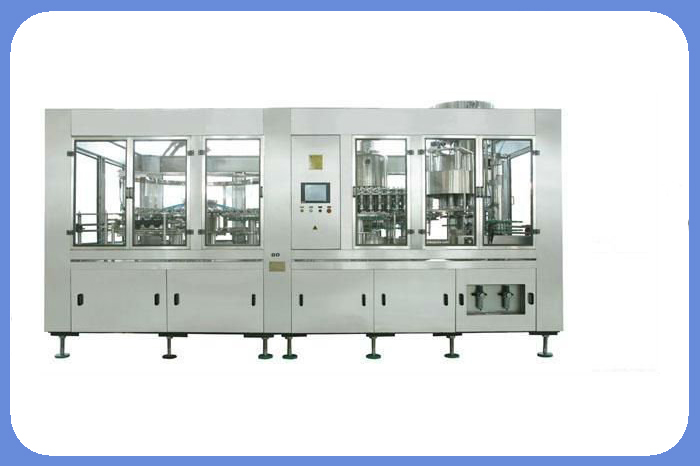

Name: | .RCGF60-60-15.Juice bottling machine metal cap glass bottle juice filling plant/fresh squeezed juice filling machine (3 in 1) |
Driven Type: | Electric |
Material: | Stainless Steel |
Application: | Pure Water|mineral Water|beverage |
Product Name: | .RCGF60-60-15.Juice bottling machine metal cap glass bottle juice filling plant/fresh squeezed juice filling machine (3 in 1) |
Description:
1. Integrated washing, filling, capping in one unit to realize automatic juice filling.
2. Washing part: There is enough water pressure to clean bottles. And the washing water is from the RO system, it is purified water.
3. Filling part: Adopted micro-negative pressure filling, and filling speed is quick, steady and accurate.
4. Capping part: There is a set of automatic lid arranging device to drop into cap rail to make accurate capping. The capping system will automatic delete the opposite caps.
Feature:
1..Suitable for producing large capacity production.
2.Hot filling machine is adopted return-flow system to keep the filling temperature.
3.Juice filling machine is equipped a set of CIP system for washing pipes after the daily working.
4.The machine is controlled by PLC with touch screen. The language can be chosen in Chinese, English and other language. Usually is English.
5.The material of washing, filling and capping is SUS 304 which can be anti-corrosion, rust prevention and long life span.
Specification:
|
RCGF16-12-6 |
RCGF32-32-10 |
RCGF60-60-15 |
Productivity |
3000BPH |
14000BPH |
28000-30000BPH |
Rinsing Head |
16 |
32 |
60 |
Filling Head |
12 |
32 |
60 |
Capping Head |
6 |
10 |
15 |
