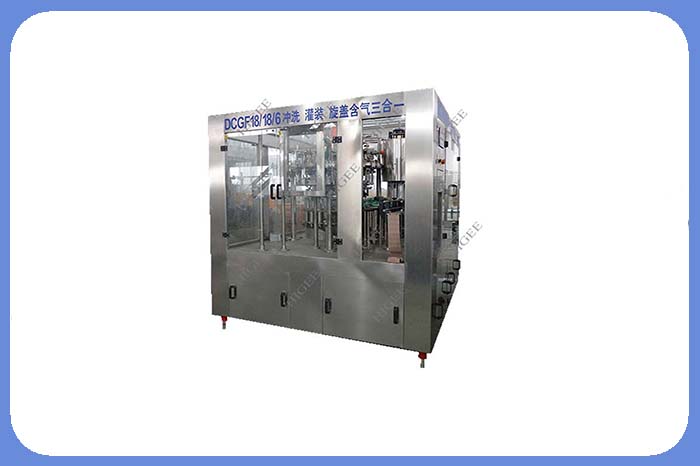

| Name: | 500ml automatic mineral liquid 3 in 1 filling machine for various bottles |
| Driven Type: | Electric |
| Material: | Stainless Steel |
| Application: | Pure Water|mineral Water|beverage |
| Product Name: | 500ml automatic mineral liquid 3 in 1 filling machine for various bottles |
Applications
Water filling machine is used to fill pure water, mineral water and other non-carbonated beverage.The machine is widely used in the production of beverage because of its characteristics of automation, high intelligence, stable and reliable machine performance, simple structure, high production efficiency, low energy consumption and no contamination by intermediate links.
Feature
Filling machine
All rotating discs are made of stainless steel SUS304
Filling method for gravity filling
Filling valve made of SUS304L
Filling machine power transmission system through the
Technical Parameters
Model |
CGF14-12-4 |
Number of stations |
rinse 14, filling 12, capping 4 |
Rated production capacity |
3000 bottles / hour (500ml / bottle) |
Air pressure |
0.7MPa |
Gas consumption |
0.5M3/min |
Red bottle water pressure |
0.2-0.25 MPa |
Red bottle water |
0.5 tons / hour |
filling method |
atmospheric pressure filling |
Rated voltage |
110V|220V|380V |
Dimensions |
2100 × 1500 × 2200 (length × width × height) |
equipment weight |
2000kg |
