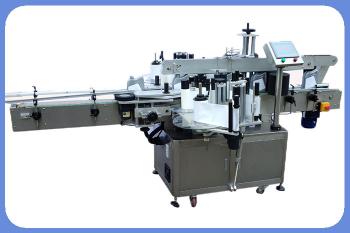

Name: | Automatic labeling machine two sides adhesive label applicator with coding machine for square,oval,round and flat bottles |
Sype: | Labeling Machine |
Size of Machine: | 2800(L)×1450(W)×1360(H)mm |
Labeling Speed: | 60-200pcs/min |
Height of Object: | 30-280mm |
Thickness of object: | 20-200mm |
Height of Label: | 5-150mm |
Length of Label: | 25-300mm |
Accuracy of Labeling: | ±1mm |
Label roller inside diameter: | 76mm |
Label roller outside diameter: | 320mm |
Power Supply: | 220V 3.5kw 50/60HZ |
compressed air consumption; | 5Kg/cm2 |
Option: | Coding machine |
Quick Details:
Automatic Grade:Automatic
Driven Type:Electric
Power Supply: 220V 3.5KW Single-phase 50/60HZ
Height of Object:30-350mm
Applicable Diameter of Bottle Body:20-120mm
Height of Label:5-180mm
Place of Origin: Shanghai,China(Mainland)
Brand Name:HIGEE
Model Number:HAS-3500
Size of Labeling Machine: 2800(L)×1650(W)×1500(H)mm
Weight: 450Kg
Label roller outside diameter: 420mm
After-sales Service:Provided engineers available to service machinery overseas
Labeling Speed: 60-350bottles/min
Features:
1. It can make labeling on both sides at the same time efficiently. Of course client can choose to make one side or double sides labeling.

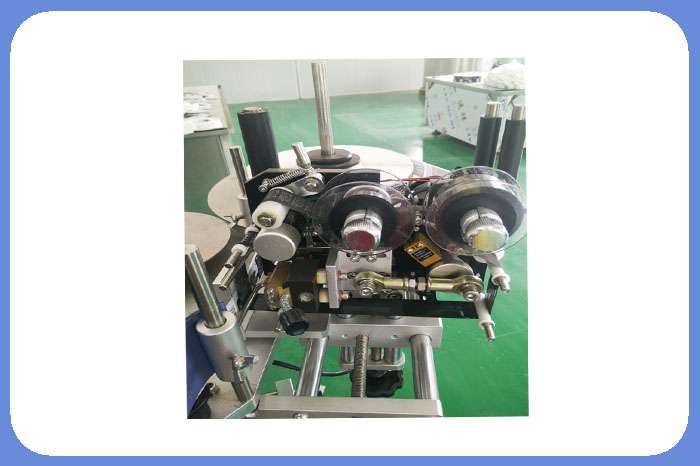

2. Client can choose to add coding machine.
3. It can work separately or work connecting with conveyor.
4. Equipped with touch screen & PLC control system.
Customer's service:
1.Higee company can provideo turn-key project for you, only you have any idea to start beverage factory plant.
2. Higee company have professional design team, our engineer can draw bottle samples and flow chart of workshop for you .
3. Higee company give you the best quotation for all kinds of beverage production, only you can tell me which kind of drink you want to product, what is your capacity(how many bottles one hour) what is you bottle material, pet or glass,etc
After service:
1. We send the engineers to help installing, commissioning and training, the engineers start from our factory area.
2. We supply below necessary documents with the machine:
a. Machine layout
b. Electricity diagram
c. Machine certificate
d. General manual book/maintenance book
3. After one year guarantee, the seller provides payable spare parts and technician’s VISITING maintenance service.
Spare Part:
Timing belt ( For pulling the label belt) parts
images

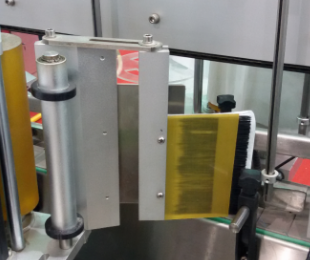

board for peeling off label
Timing belt
